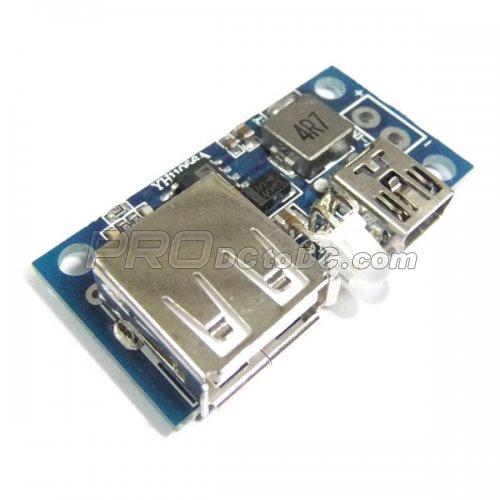

Power Supply Module DC 2.6~5.5V to 5V 2A Voltage Regulator/Power Converter USB Charger DC 5V USB Adapter/Driver Module

  • Item ID #090479

List Price: $9.20 Our Price: $6.50Save 29%

Price(per unit)
Buy More: please contact us

It is a USB Adapter/USB Charger/Power Supply Module, Input voltage: DC 2.6~5.5V, Output voltage: DC 5V, Output current: 0~2A, Application: Suitable for charging Phone, Tablet, Pad, MP3, PSP etc.

Other Products in DC Boost/Step Up

page 1 of 2 Previous Page Next Page
  • Module properties: non-isolated boost module (BOOST)
  • Input voltage: DC 2.6~5.5V
  • Output voltage: DC 5V
  • Input current: 0~3A
  • Output current: 0~2A
  • Operating temperature: -40°c to +85°c
  • Operating Frequency: 1.2MHz
  • Conversion efficiency: up to 92%
  • Over current protection: Yes
  • Over-temperature protection: Yes (Over-temperature Automatically shuts down the output)
  • Input reverse polarity protection: No ( please install diode at input port )
  • Charging input voltage: 5V
  • Charging current: 500mA
  • Power indicator: 3.6V Red LED light up
  • Identify resistance: for Tablet, MP3, MP4, PSP, Phone, Pad
  • Installation: 3mm screws
  • Dimensions: 40 x 20 x 10mm
  • Connection mode: welded
  • V-IN input
  • USB output
  • MINI-USB for charging input
Testing for reference:
  • Input 4.1V, Output 0.5A, Efficiency 92%. Input 4.1V, Output 1A, Efficiency 90%. Input 4.1V, Output 1.5A , Efficiency 84%. Input 4.1V, Output 2A, Efficiency 79%.
Some Application:
  • it can be use for boost a single lithium battery to get 5V output. use for charging Phone, Tablet, Pad, MP3, PSP etc.
Package Include:
  • 1 x Power Supply Module ( USB Adapter/USB Charger )
