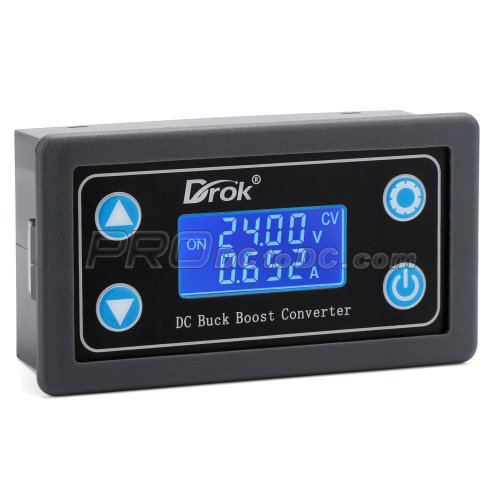

35W Adapter DC 5~30V to 0.5~30V Buck Boost Converter/Voltage Regulator CC CV Power Supply Module for Solar Panel Charging

  • Item ID #200480
Qty.:

List Price: $22.50 Our Price: $9.50Save 58%

Price(per unit)
1-4
$9.50
5-9
$9.03
10-19
$8.55
20-29
$8.08
30+
$7.60
Buy More: please contact us

It is a Power Supply Module/Voltage Regulator/Adapter. Input voltage: DC 5.0V~30V. Output voltage: DC 0.5V~30V. Output current: 0~4.0A. Output power: 35W with natural cooling, can reach 50W if add a cooling fan. Application: as normal buck boost converter with over-current protection function; as battery charger; as high-power LED CC driver module, etc.


Other Products in Bare board Power Supply

page 1 of 2 Previous Page Next Page

Parameters:

  • Input voltage: DC 5.0V~30V (with LVP when voltage lower than 4.7V)
  • Output voltage: DC 0.5V~30V
  • Output current: 0~4.0A
  • Output power: 35W with natural cooling, can reach 50W if add a cooling fan
  • Voltage accuracy: ±1% + 1 digit
  • Voltage resolution: 0.01V, can be calibrated manually
  • Current accuracy: ±1.5% + 3 digits
  • Current resolution: 0.001A, can be calibrated manually
  • Conversion efficiency: about 88%
  • Soft start: Yes
  • Working frequency: 180kHz
  • Display: LCD display
  • Size: 78.8*42.9*25mm/3.1*1.69*0.98 inch
Features:
  • PARAMETER: input voltage DC 5.0V~30V; output voltage DC 0.5V~30V; output current 0~4.0A; output power 35W with natural cooling.
  • APPLICATION: as normal buck boost converter with over-current protection function; as battery charger; as high-power LED CC driver module, etc.
  • PROTECTION: input reverse connection; output short-circuit; output anti-backflow; over-voltage; over-current; over-power; under-voltage; over-temperature.
  • LCD DISPLAY: clear LCD screen displays voltage, current, power, capacity, energy and time (switched by button).
  • OTHER FEATURES: with CC CV mode; with buttons to be easily operated.
Protection:
  • Input reverse connection protection: Yes
  • Output short circuit protection: Yes
  • Output anti-backflow protection: Yes, don't need to add a anti-backflow diode when used for charging battery
  • Over-voltage protection (OVP): Yes
  • Over-current protection (OCP): Yes
  • Over-power protection (OPP): Yes
  • Low-voltage protection (LVP): Yes, 4.7V
  • Over- temperature protection (OTP): Yes, 100℃
Buttons:
  • 1. UP: short press to switch display input/output voltage; long press to enter calibration interface.
  • 2. DOWN: short press to switch display current/power/capacity/energy/time
  • 3. SET: long press to enter setting interface
  • 4. ON/OFF: short press to turn on/off output; in the voltage current displaying interface, long press to set the power on output status (-ON-: power on output default on, -OFF-: power on output default off); in the capacity/energy/time displaying interface, long press to clear the corresponding data.
Package Included:
  • 1 x Buck Boost Module ( Power Supply Module/Voltage Regulator/Adapter/Power Converter )
