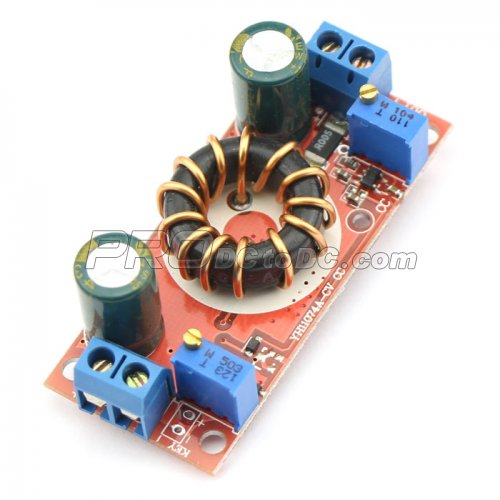

10A Power Converter DC 4~30V to 1.2~30V Buck Power Supply Module/Voltage Regulator DC 5V 12V 24V Adapter/Charger/Driver Module

  • Item ID #090484
Qty.:

List Price: $18.50 Our Price: $13.00Save 30%

Price(per unit)
1
$13.00
2-4
$12.35
5-19
$11.70
20-29
$11.05
30+
$9.10
Buy More: please contact us

It is a Power Supply Module/Adapter/Charger/Power Converter, Input Voltage: DC 4~30V (limit 36V), Output Voltage: DC 1.2~30V (adjustable,Default output 5V), Output Current Range: 0~10A, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, LED lights, Fan, intercom and monitor system, etc.


Other Products in Constant Voltage/Current

page 1 of 2 Previous Page Next Page
Feature:
  • Synchronous Rectification Adjustable
  • Module properties: non-isolated buck module
  • Input Voltage: DC 4~30V (limit 36V)
  • Output Voltage: DC 1.2~30V (adjustable,Default output 5V)
  • Minimum Voltage Difference: 1V
  • Output Current Range: 0~10A
  • Output Constant Current Range: 0.3~10A
  • Default output: 5V/6A
  • Operating temperature: -40°c to +85°c
  • Working frequency: 150KHz
  • Conversion efficiency: up to 98%
  • Installation: 4 x 3mm screws
  • Wiring: Terminals, Needn't solder, V-IN input, V-OUT output
  • Cutting size: 60mm x 26mm
  • Have operating indicator
  • Protection function
  • Short circuit protection: YES ( Limit current is the constant current value)
  • Over-temperature protection: YES (Over-temperature auto reduces the output current)
  • Input reverse polarity protection: None (If need please install diode at input port )
  • Output install diode protection: None ( please install diode at output port )
  • Current voltage adjusted:
    • Voltage adjusted: clockwise increase,counterclockwise reduce
    • Current adjusted: clockwise increase,counterclockwise reduce
  • Please note that when setting the constant current value,voltage should higher than 1.2V
  • please check the picture above for details
Some Application:
  • DIY voltage Regulator, with constant current, can protect the load.
  • The power supply for electronic equipment.
  • For battery charging,Setting the charging voltage and current according to the different voltage&battery capacity,with indicator, convenient to observe the state of charge.
  • Solar panels power supply for battery charging, With constant current, which prevents battery overcharge.
  • Used as a car power supply, Power supply for cell phone, laptop, or a variety of digital products
Package Include:
  • 1 x DC/DC Buck Converter ( Power Supply Module/Voltage Regulator/Adapter/Charger )
