- Dimensions: length (68mm) wide (43mm) high (22mm)
- Output voltage :1.0-12V
- Output current: 6A (natural cooling)
- No-load current: 10.2mA (24V to 12V) 7.7mA (24V to 5V)
- Load starting current Rated 6A, 7A.
- Type of protection: Undervoltage shutdown, overcurrent shutdown
- Please try to avoid Frequently short-circuit when Normal output. Minimize the impact on burn mos tube.
- Use Synchronous rectifier controller and 3.7 milliohms low impedance NMOS switch, Can be reliably continuous work in the 6A output current.
- Light load Maximum efficiency More than 98%!
When your need large current output, Please use the two-terminal wiring, Best is Direct welding,
To avoid terminal Impedance is too large to make output voltage drop.

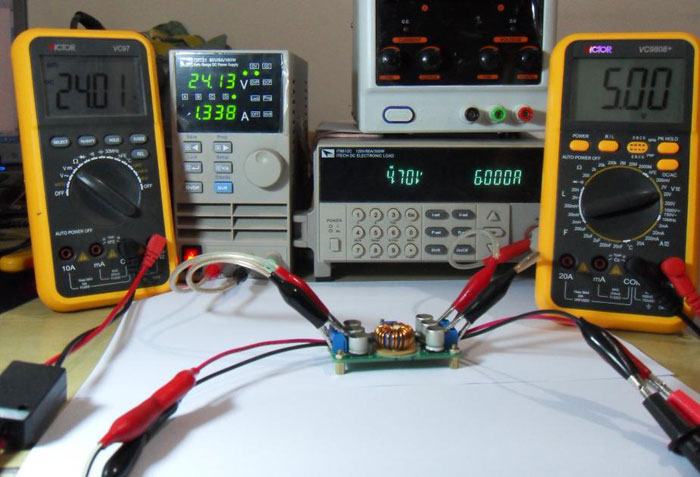

24V to 5V/6A:
Efficiency = (5.00 * 6.00) / (24 * 1.34) * 100% = 93.3%

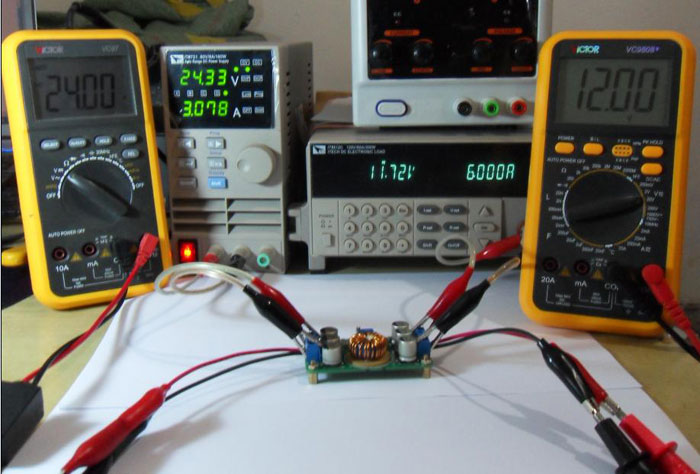

24V to 12V/6A:
Efficiency = (12.00 * 6.00) / (24 * 3.078) * 100% = 97.5%
